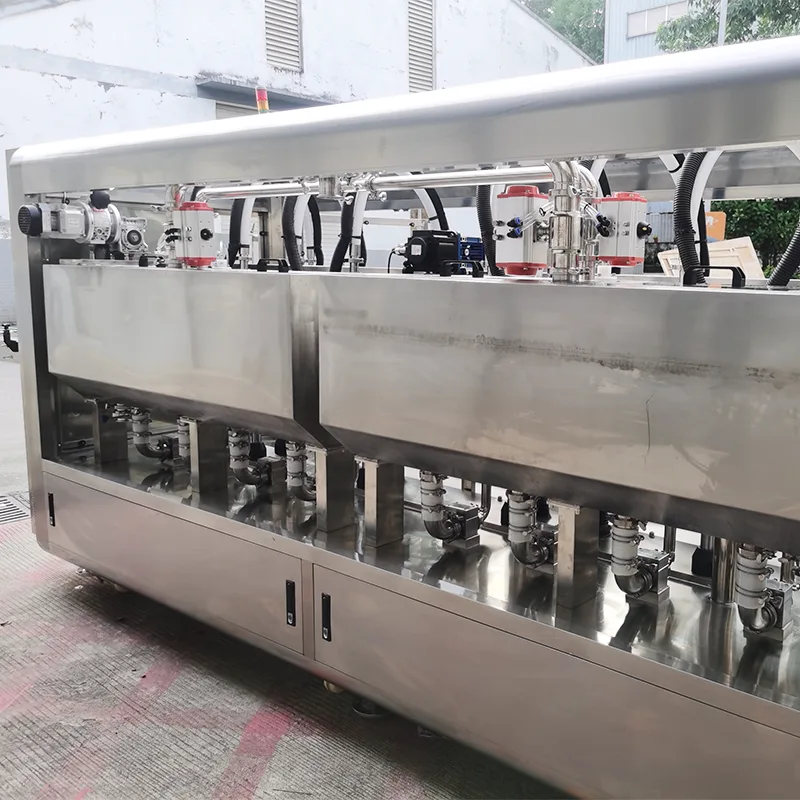

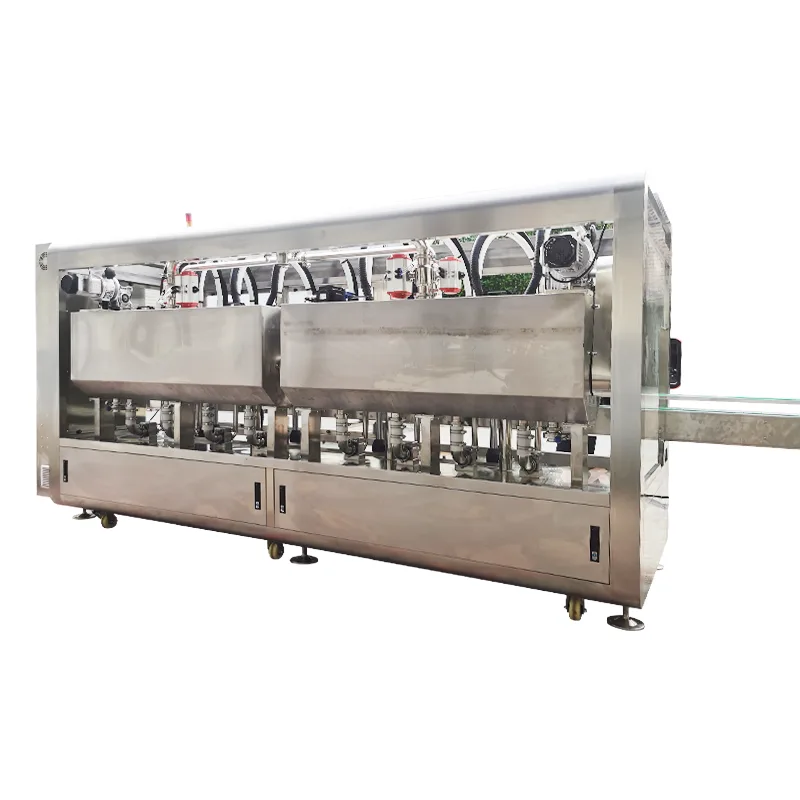

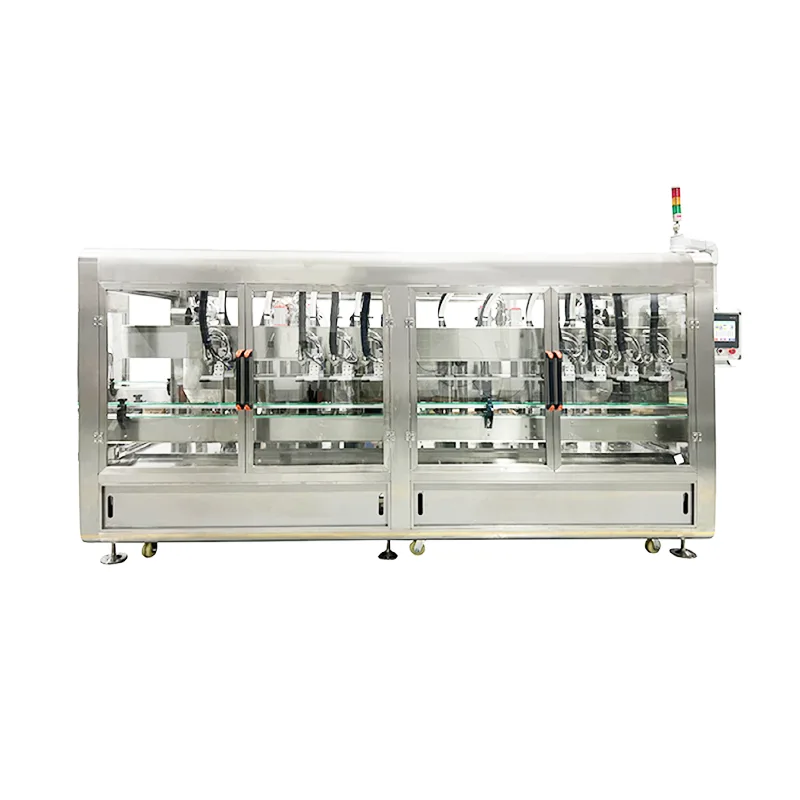

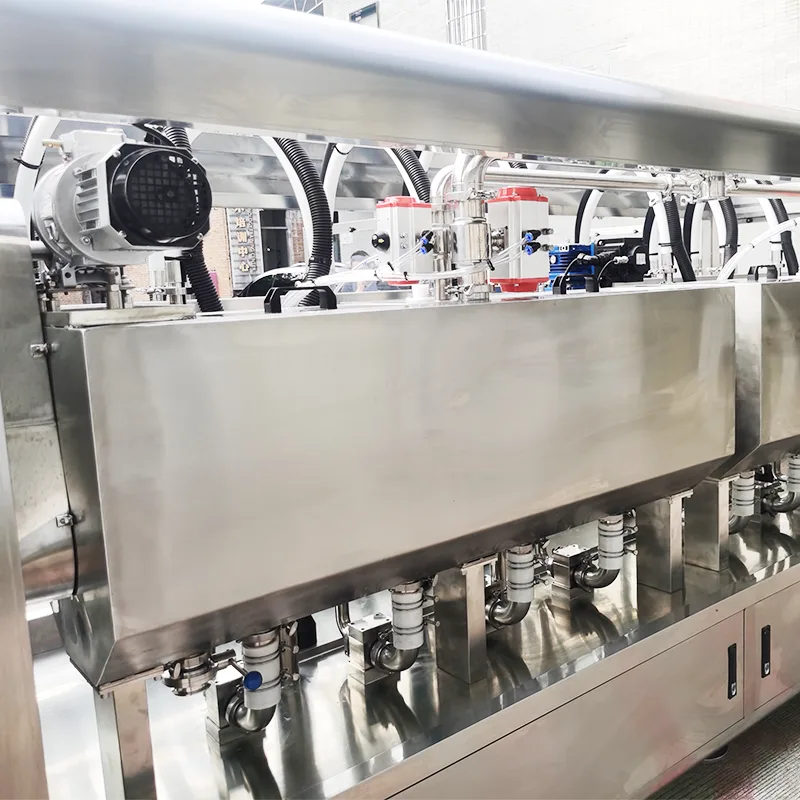

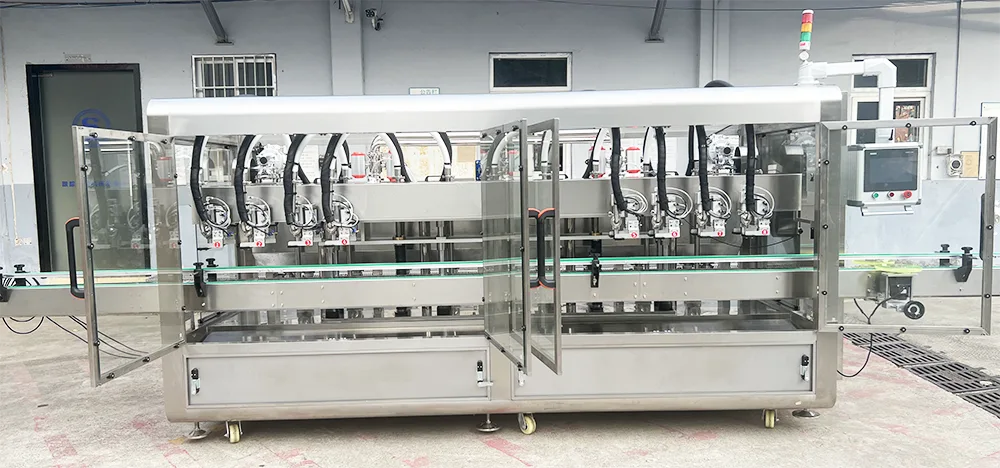

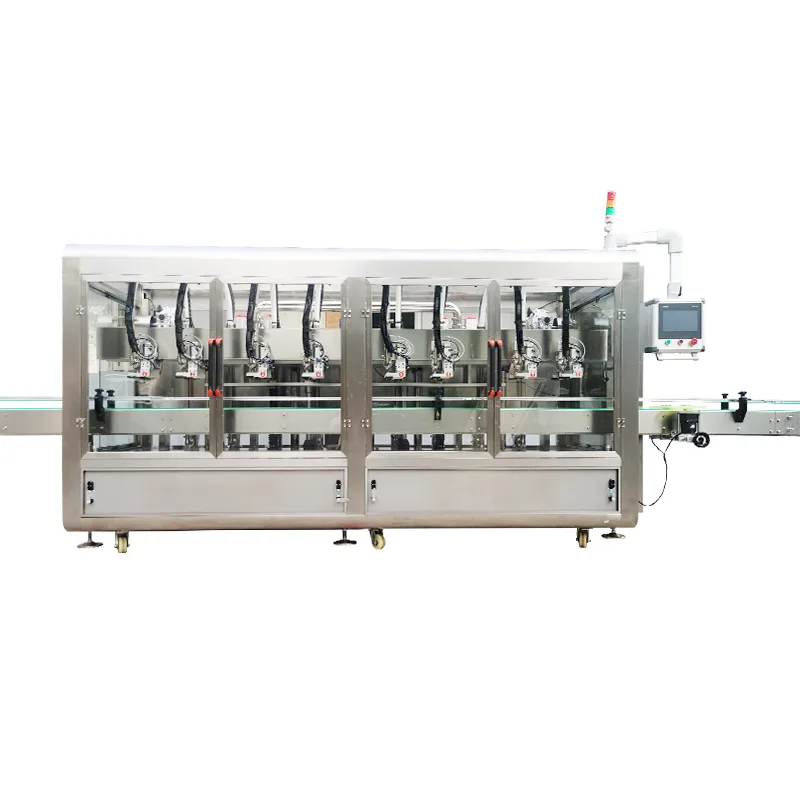

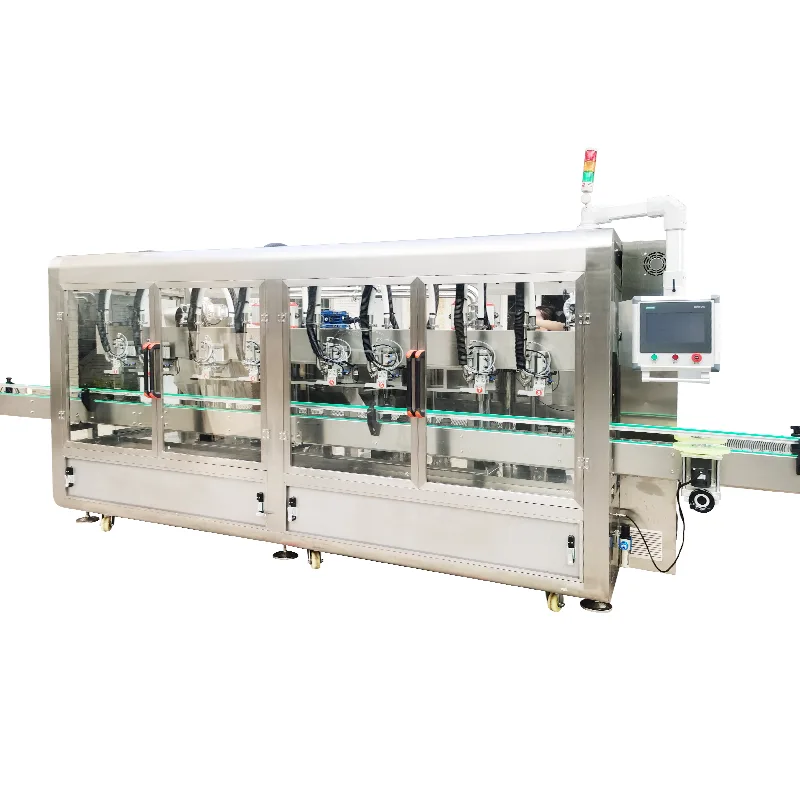

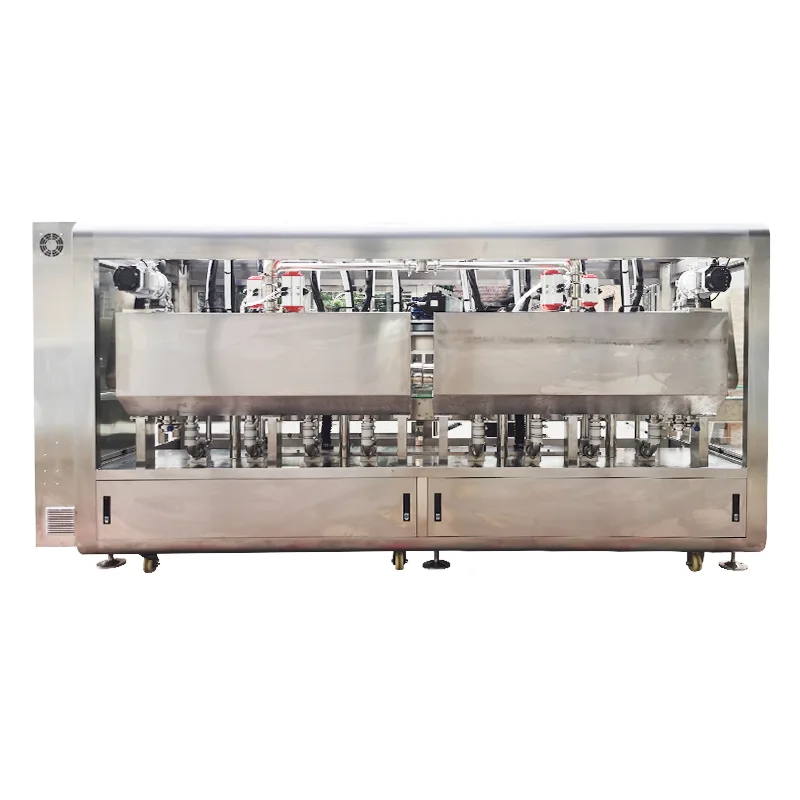

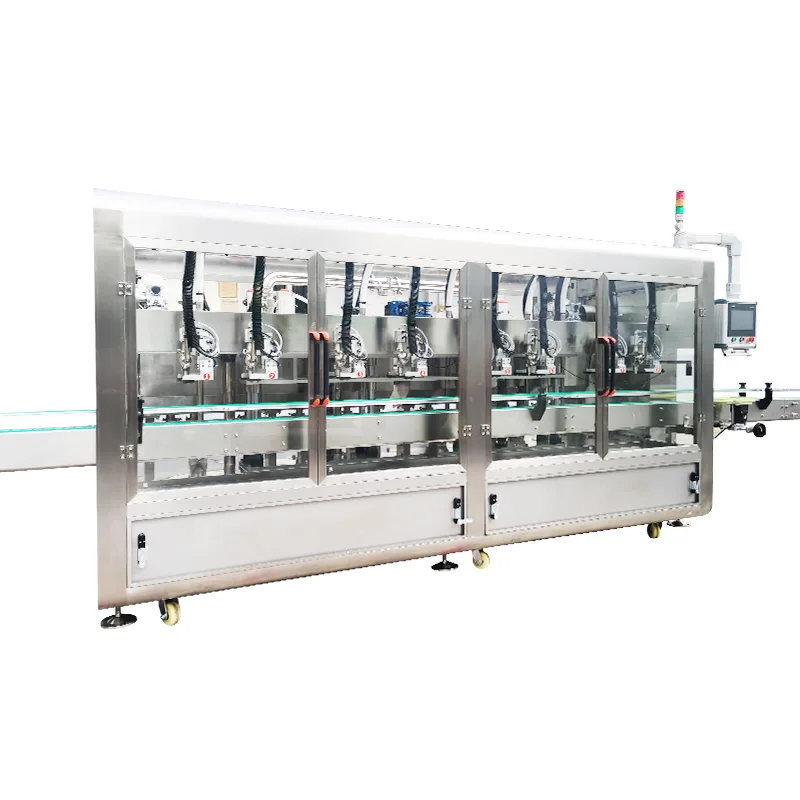

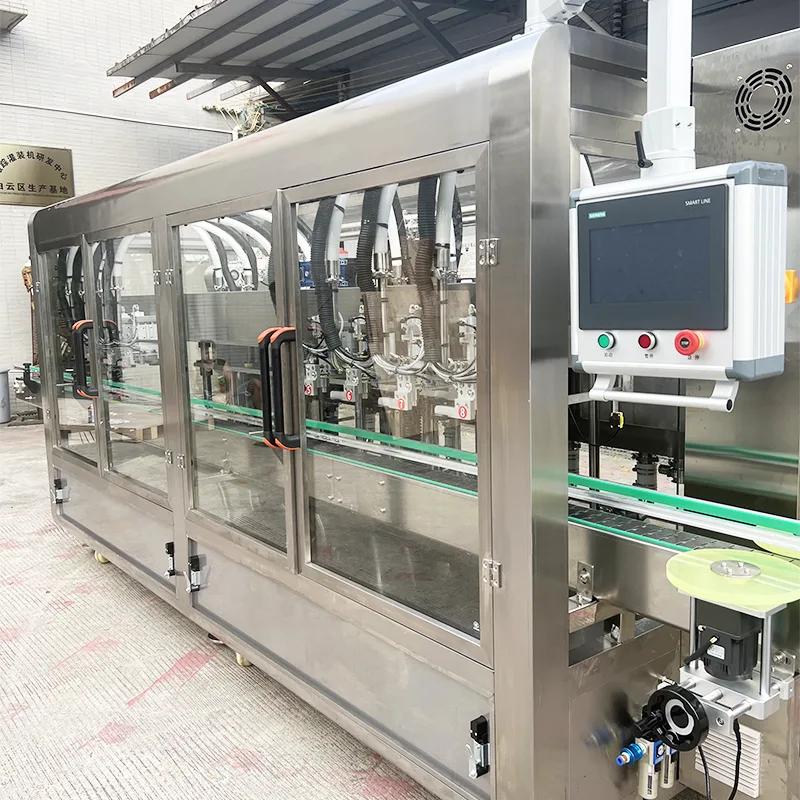

Edible Oil Filling Machine

Core Technical Features

As a professional manufacturer, factory and supplier of oil filling machinery from China, Shilong is equipped with a mature adaptive filling system for various oil products.

Adaptive Filling System: Equipped with built-in pressure compensation devices, the machine can automatically adjust filling parameters according to oil viscosity ranging from 20-200cP. It perfectly addresses the technical difficulties and unstable filling challenges in processing high-viscosity edible oils and industrial oils.

Triple Sealing Protection: The filling valve features a patented sealing structure combined with food-grade silicone seals, achieving zero leakage during filling.

Flexible Conveying System: Includes a stepless speed-adjustable conveyor belt, ensuring stable handling of special containers like irregularly shaped bottles and flexible packaging.

Data Traceability Function: Built-in production data recording system for real-time monitoring of key metrics such as filling volume and qualification rate.

Quick Cleaning Design: CIP online cleaning interfaces reduce equipment changeover and cleaning time by 60%.

Application Scenario Configuration

Application Scenario

Recommended Configuration

Technical Advantages

Premium Olive Oil Filling

Nitrogen Protection Filling System

Antioxidant, extends shelf life

Bulk Oil for Catering

Dedicated 20L/30L Drum Filling Nozzles

Splash-proof, fast filling

Seasoning Oil Production Line

Multi-Station Rotary Filling System

Precise control for small doses

Diversified Production

Modular Quick-Change System

15-minute bottle type switching

Selection Decision Framework

Capacity Dimension Assessment

Single-shift demand ≤ 2 tons → Semi-automatic filling line

Single-shift demand 2-10 tons → Fully automatic linear filling machine

Single-shift demand ≥ 10 tons → Rotary multi-head filling system

Process Matching Analysis

Clear oils → Standard optical sensor positioning

Dark-colored oils → Infrared sensor positioning system

High-value oils → Mass flow meter metering system

High-foam oils → Vacuum defoaming filling technology

Upgrade and Expansion Considerations

Reserved data interfaces for MES system integration

Modular architecture for future functional expansions

Standardized components ensure 10-year spare parts supply

Value Proposition

As a technology-driven manufacturer deeply rooted in the food machinery sector, Shilong operates an advanced R&D and production base in the Pearl River Delta region of China. Our factory utilizes German precision machining centers to produce core components, and every Edible Oil Filling Machine undergoes 72 hours of continuous operation testing before leaving the factory. We not only provide equipment but also build a complete value chain for our customers, covering process optimization, operation training, and lifetime maintenance, establishing ourselves as a trusted technological supplier for global edible oil producers.
