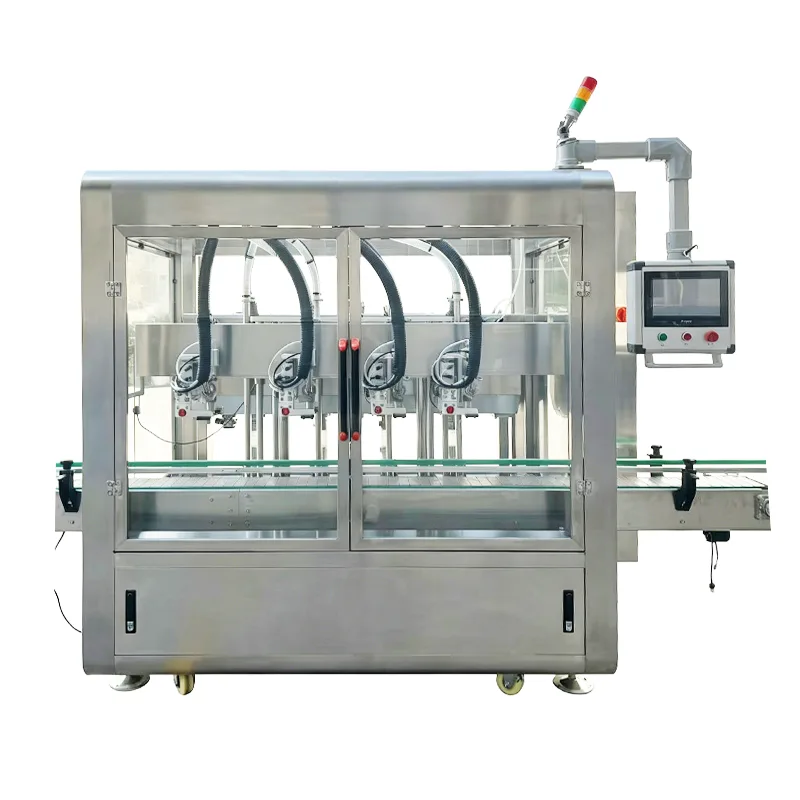

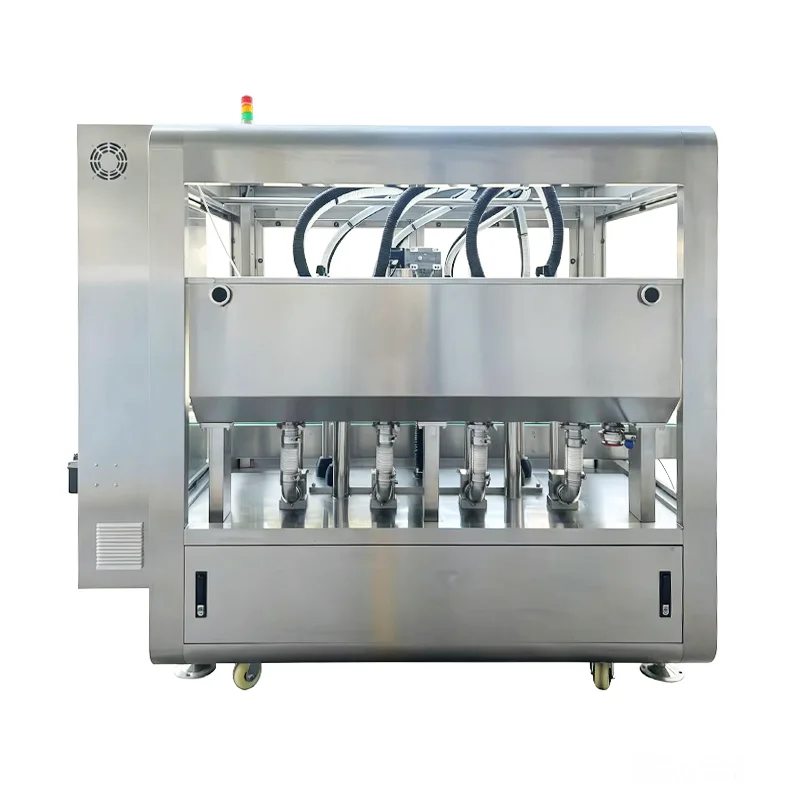

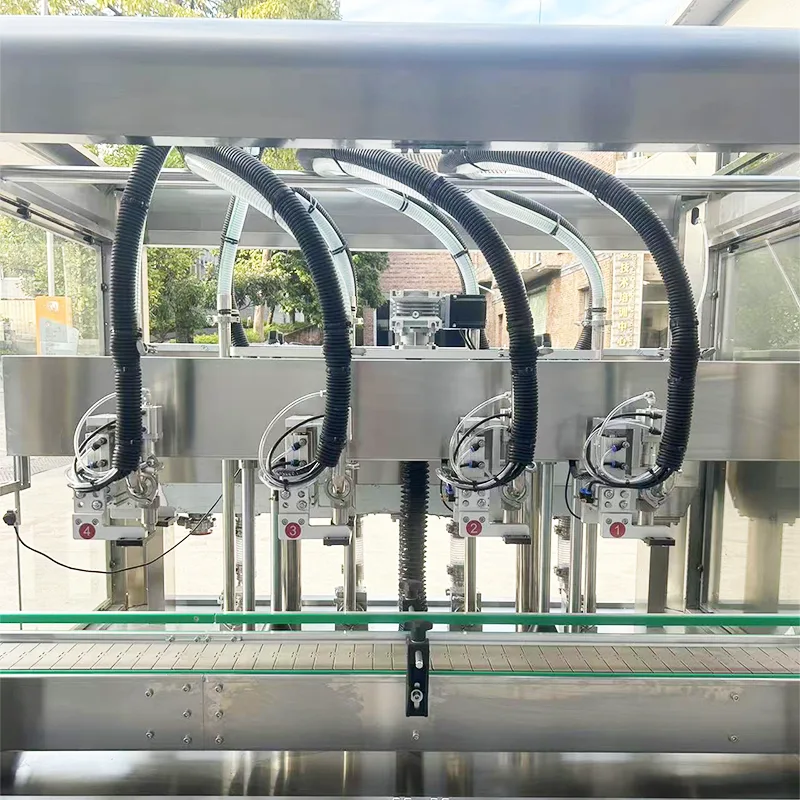

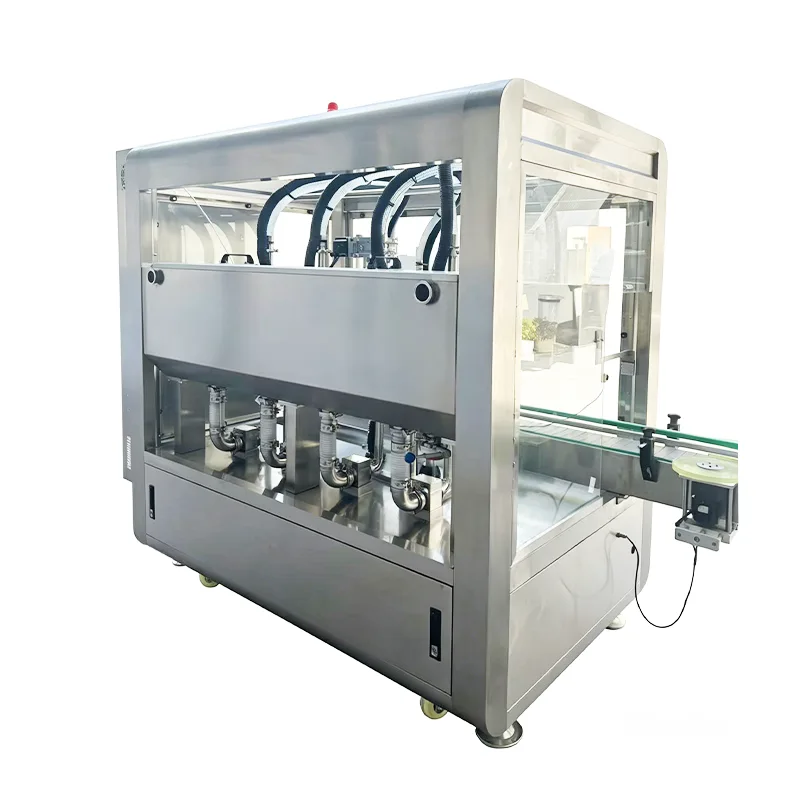

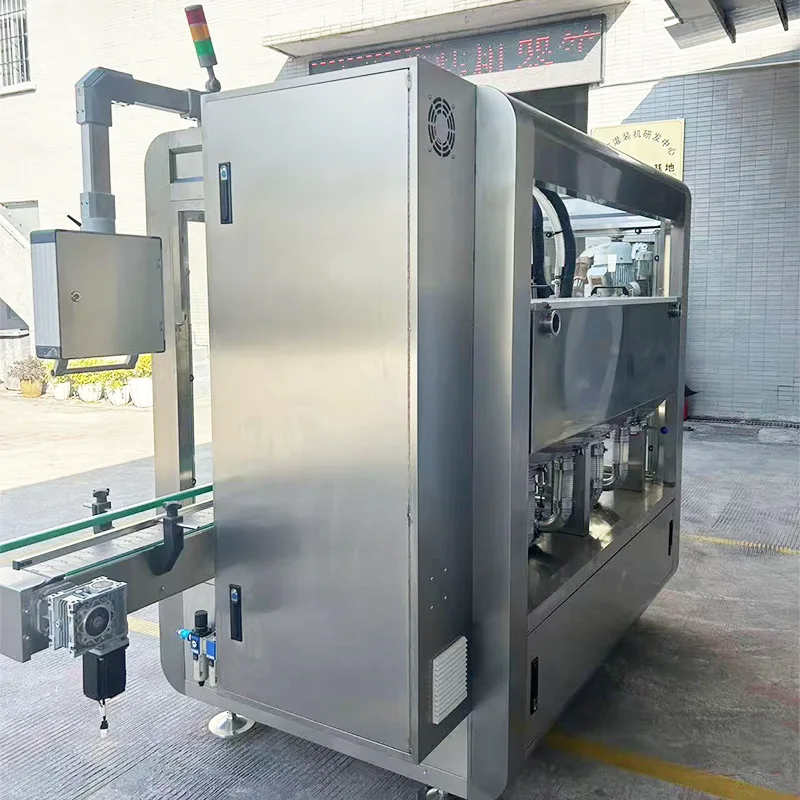

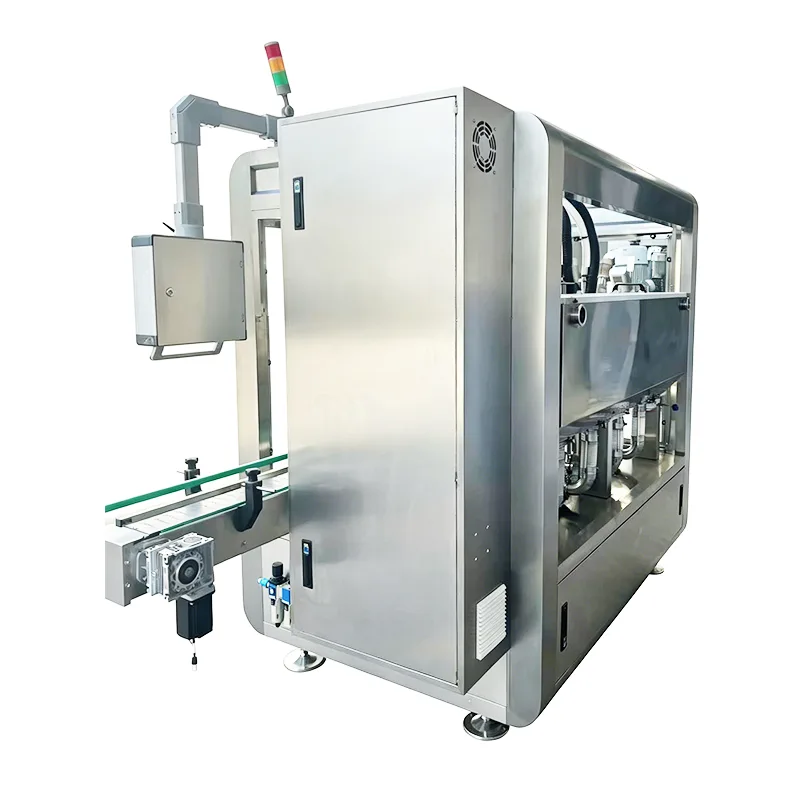

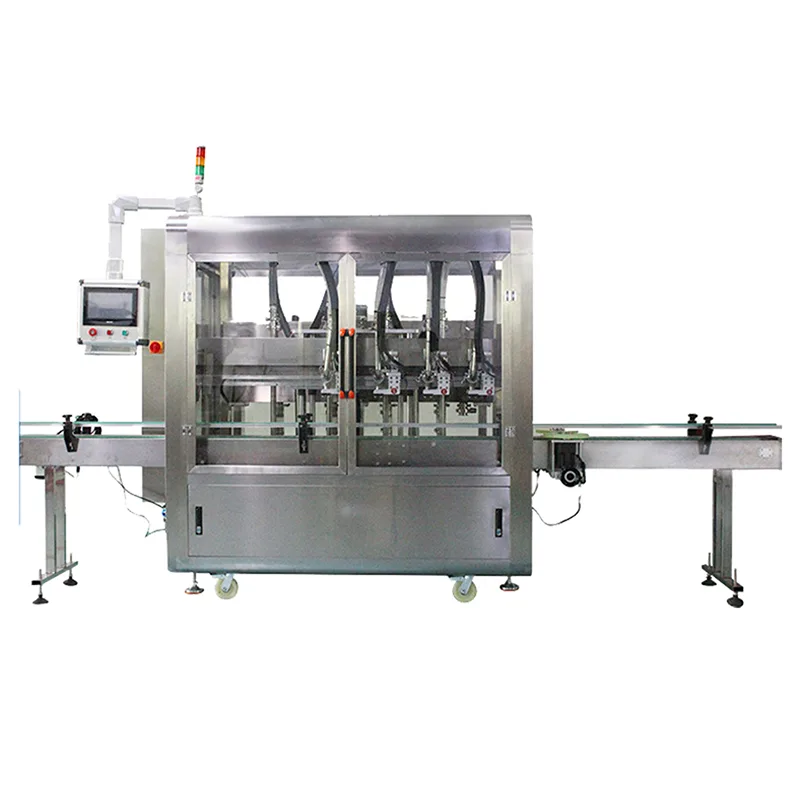

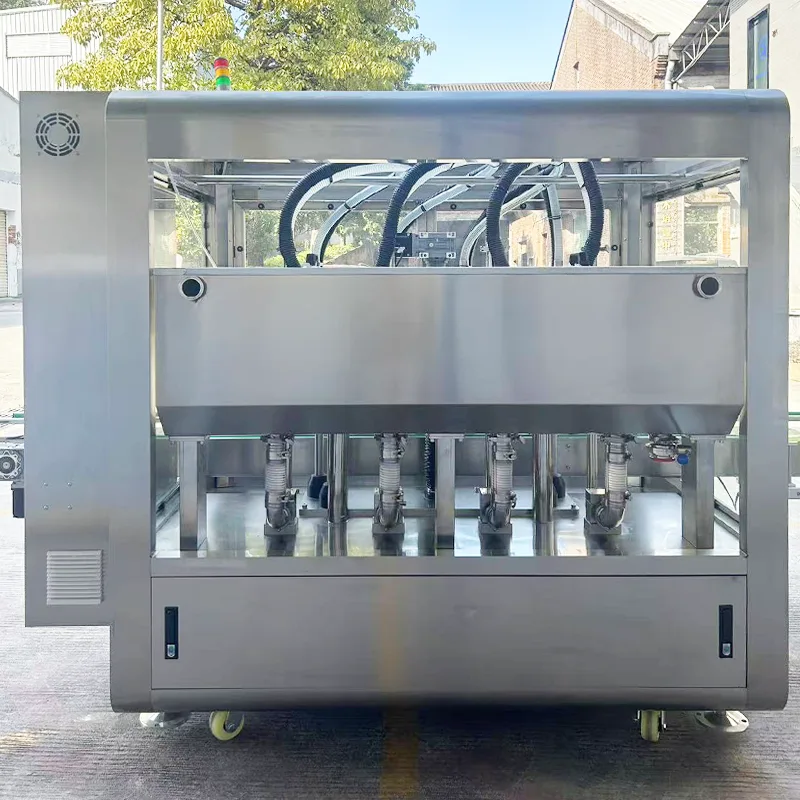

Lubricating Oil Filling Machine

Shilong Lubricating Oil Filling Machine Product Overview & Selection Guide

I. Core Product Advantages

Industrial-Grade High-Precision Filling System

Designed for high-viscosity industrial oils (lubricants, hydraulic oils, gear oils), featuring servo-piston filling technology adaptable to 0.1-20L containers with ±0.2% accuracy.

Leak-Proof & Volatility Control Design

Equipped with sealed filling heads and nitrogen protection systems, effectively reducing oil oxidation and volatility. Material loss decreased by 15%, compliant with VOCs environmental standards.

Corrosion-Resistant Long-Life Structure

Core flow channels made of 304 stainless steel and special anti-corrosion coatings, resistant to additive corrosion. Key component lifespan extended 3x compared to ordinary machines.

Intelligent Production Management

Integrated IoT data collection modules for real-time monitoring of filling volume, production speed, and equipment status, compatible with MES systems.

II. Frequently Asked Questions (FAQ)

Q1: Is it suitable for lubricating oils of different viscosities?

Compatible with ISO VG 10-1500 viscosity range. Customizable heated flow channels for ultra-high viscosity oils.

Q2: Can it handle foamy synthetic lubricating oils?

Standard vacuum defoaming and low-speed filling modes effectively control foam generation.

Q3: Does the equipment require special foundation installation?

Modular design requires no special foundation, but it is recommended to reserve 1.2x the equipment length in the factory for maintenance.

Q4: As a supplier, do you provide local support?

12 technical service points across China, offering 48-hour on-site response.

III. How to Choose the Right Lubricating Oil Filling Machine?

Oil Characteristics Analysis

Base/mineral oils → Standard Lubricating Oil Filling Machine

Synthetic/particle-containing oils → Optional anti-sedimentation stirring and specialized filling valves

Highly volatile oils → Recommended nitrogen protection and low-temperature filling systems

Production Capacity & Automation Needs

Production Scenario

Recommended Configuration

Shilong Solution

Laboratory/Small batch

Single-head semi-auto + manual drum handling

Economy Lubricating Oil Filling Machine

Medium oil blenders

Four-head fully auto + automatic capping

Standard Lubricating Oil Filling Machine

Large petrochemical plants

Rotary 16-station filling system

Customized Lubricating Oil Filling Machine

Extended Function Recommendations

Explosion-proof configuration (Ex d IIB T4 standard)

Multi-size automatic switching (robotic drum changing)

Filling data system (QR code binding)

IV. Shilong Manufacturing & Service System

As one of China's largest industrial filling equipment manufacturers, Shilong is not only an equipment supplier but also provides:

Factory line diagnostics: Free optimization solutions for oil filling processes, improving factory space utilization by 30%

Global application experience: Lubricating Oil Filling Machine exported to 50+ countries, compliant with ATEX, UL, and other international standards

Full lifecycle supplier services: Lifetime technical support from equipment selection and installation to spare parts supply

Local manufacturing rapid response: Leveraging the China Yangtze River Delta supply chain cluster for 10-day emergency delivery of core models
